Aisle end display
End cap display racks create a focused merchandise point at the end of gondola runs, where shoppers naturally slow or turn.
Retail Shelving
End Cap Display Rack
Aisle-end display shelving for featured merchandise, promotional zones and gondola run transitions.
Quick Answer
What is End Cap Display Rack?
An End Cap Display Rack is an aisle-end fixture used at the exposed end of a gondola run for featured merchandise, seasonal items or category transitions. It is planned as a compact single-facing display rather than a full aisle body. The main limitation is compatibility: height, depth, finish, traffic clearance and adjacent gondola dimensions must be checked together.
Typical applications
Where This System Fits
- Aisle-end displays for supermarkets, minimarts, pharmacies and convenience stores.
- Featured product zones connected to island gondola runs.
- Seasonal, promotional or impulse displays that need a compact retail face.
- Store layouts coordinating wall gondolas, island gondolas and end-cap merchandising.
- Projects that can confirm adjacent aisle dimensions, finish and accessory requirements.
Operating logic
How This Product Works
Review the operating principle, load movement and main configuration checkpoints before comparing a system for the application.
Retail shelf interface
Shelf depth, height, hooks, price strips and product packaging should match the featured category without crowding the adjacent aisle.
Promotion change flow
Store teams can rotate seasonal or impulse products on the end cap while keeping nearby wall and island gondolas in their main layout.
End cap inputs
Confirm gondola compatibility, display height, shelf quantity, product size, aisle clearance, colour finish, price-strip needs and replenishment access.
Technical notes
- An end cap display rack sits at the end of an island gondola aisle or in another aisle-end retail position. Its job is to create a focused display face that customers see while entering, leaving or crossing an aisle. The fixture can use shelves, hooks, price strips and matching back panels depending on the merchandise presentation.
- For white or black end cap shelving, Runda Rack's first-party specification lists 900 mm bay length, 470 mm overall depth and 1600 or 1900 mm overall height. These dimensions should be presented as end-cap dimensions, not stretched into wall-run or island-run assumptions. Shelf level count is not supplied for the end cap and should be confirmed before quoting.
- For wood-grain end cap shelving, the supplied data lists 790 mm bay length, 410 mm overall depth and 1300, 1600 or 1900 mm overall height. The finish is yellow wood grain with a black frame under the shared wood-grain construction data. The wood-grain end cap should be kept distinct from the 900 or 1200 mm wood-grain wall and island bay options.
- End-cap planning normally starts from the adjacent aisle. The selected height should not block required sight lines, the depth should not create a trolley pinch point, and the display face should not project beyond a safe circulation path. If the end cap is visually tied to island gondola shelving, finish, back panel style and shelf-edge ticketing should be coordinated.
- Accessories need their own line items. Square tubes are available in 700, 900 or 1200 mm lengths, hooks are 300 mm long, and price strips are available in 700, 900 or 1200 mm lengths with customisable colour. The correct accessory choice depends on whether the end cap holds boxed goods, hanging packs, impulse items or labelled promotional stock.
- An end cap is a high-visibility display position, but its commercial performance depends on product choice, signage, replenishment discipline and the customer route. Plan the fixture for visibility and access rather than relying on a fixed sales-uplift assumption.
System strengths
Advantages
- Creates a dedicated aisle-end display position separate from long wall runs and double-sided aisles.
- Helps turn the end of an island run into a planned merchandising face instead of an unused fixture end.
- Supports shelf, hook, square tube and price-strip planning for featured product presentation.
- Uses compact Runda Rack steel and wood-grain dimensions suitable for end-cap discussion.
- Can visually match the surrounding gondola layout when finish and height are selected together.
Conditions to check
Limitations and Trade-Offs
- It is not a replacement for full island gondola shelving when the store needs a long double-sided aisle.
- Traffic clearance, trolley movement and adjacent gondola compatibility are more important than on an isolated wall run.
- Shelf levels and load capacity are not published in the supplied end-cap data and should not be inferred.
- Promotional effectiveness depends on product choice and store execution, so unsupported uplift percentages should be avoided.
Available configurations
Product Specifications
Dimensions are configuration options. Final quantities, layout and accessories are confirmed for the order.

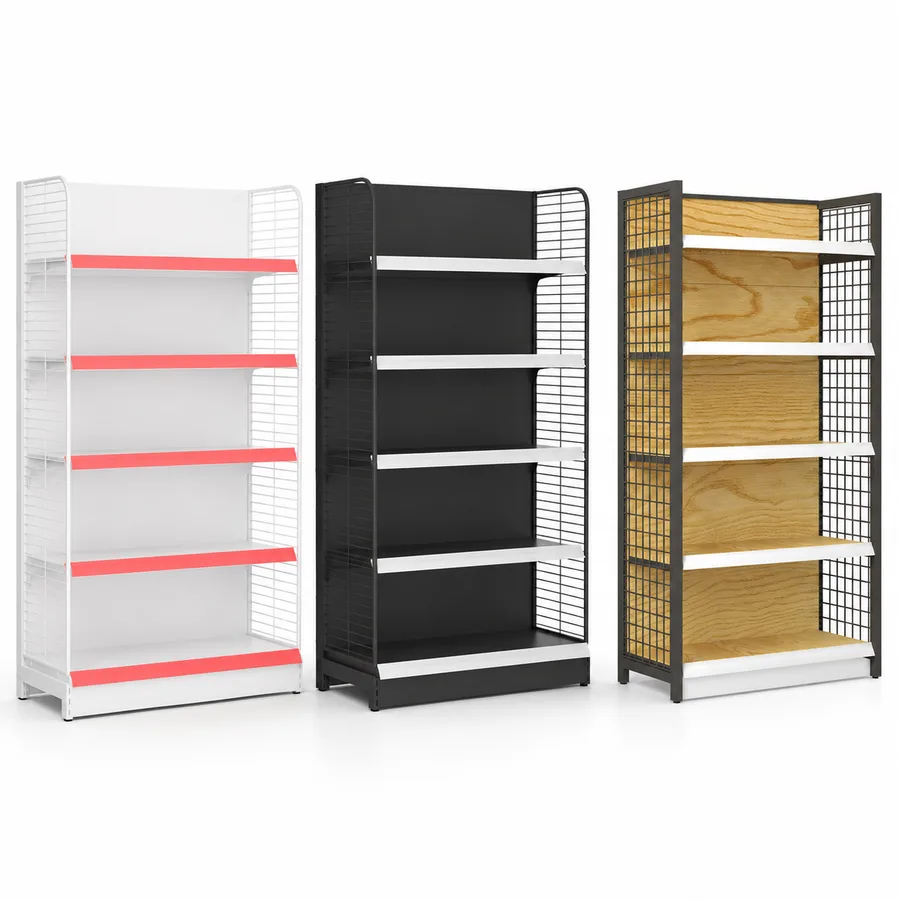

White or Black End-Cap Shelving
- Bay length
- 900 mm
- Overall depth
- 470 mm
- Overall height
- 1600 or 1900 mm
Wood-Grain End-Cap Shelving
- Bay length
- 790 mm
- Overall depth
- 410 mm
- Overall height
- 1300, 1600 or 1900 mm
White or Black Steel Construction
- Upright section
- 70 × 30 mm
- Upright thickness
- 1.5 mm
- Back panel thickness
- 0.4 mm
- Bracket thickness
- 2 mm
- Base shelf thickness
- 0.5 mm
- Shelf thickness
- 0.5 mm
- Colour options
- White or black
Wood-Grain Construction
- Upright section
- 30 × 30 mm
- Upright thickness
- 1.2 mm
- Back panel thickness
- 0.5 mm
- Shelf thickness
- 0.5 mm
- Bracket thickness
- 2 mm
- Finish
- Yellow wood grain with black frame
Compatible Accessories
- Square tube lengths
- 700, 900 or 1200 mm
- Hook length
- 300 mm
- Price-strip lengths
- 700, 900 or 1200 mm
- Price-strip colour
- Customisable
Standards and compliance
Applicable Standards and Project Requirements
RUNDA RACK products are designed, manufactured, supplied and installed in accordance with applicable international standards, project specifications and destination-market requirements. The engineering package aligns the product family, load data, site conditions, fire strategy, equipment interfaces and required documentation.
Review the standards framework →FEM 10.2.06
Design of hand-loaded steel static shelving
Parts 1 and 2Authoritative source ↗EN 15629
Steel static storage systems — Specification of storage equipment
2008Authoritative source ↗Practical comparison
Compare Common Alternatives
- Island Gondola Shelving
- Island gondola forms the double-sided aisle run; the end cap creates the compact display face at the aisle end.
- Wall Gondola Shelving
- Wall gondola builds one-sided perimeter shelving; end cap display rack is an aisle-end merchandising fixture.
- Retail Shelving
- General retail shelving covers the full store-fixture plan; an end cap is the dedicated display module at the end of an aisle.
Configuration inputs
What to Confirm Before Selection
- Adjacent gondola height, aisle-end position and available circulation clearance.
- Selected finish: white steel, black steel or yellow wood grain with black frame.
- End cap size: 900 mm × 470 mm with 1600 or 1900 mm height for white/black steel, or 790 mm × 410 mm with 1300, 1600 or 1900 mm height for wood grain.
- Merchandise type, packaging size, display depth and whether shelves or hooks are needed.
- Price-strip length, colour and shelf-edge ticketing requirement.
- Signage, seasonal changeover and replenishment access around the aisle end.
- Delivery, installation timing and any protection requirement near trolley or basket traffic.
Product questions
Frequently Asked Questions
- What is an End Cap Display Rack used for?
- It is used at an aisle end for featured products, seasonal items, impulse goods or category transitions. It is a display module, not the main double-sided aisle body.
- What are the supplied dimensions for white or black end caps?
- The supplied steel end-cap data lists 900 mm bay length, 470 mm overall depth and 1600 or 1900 mm overall height.
- What are the supplied dimensions for wood-grain end caps?
- The supplied wood-grain end-cap data lists 790 mm bay length, 410 mm overall depth and 1300, 1600 or 1900 mm overall height.
- Does an end cap guarantee a sales uplift?
- No. The end cap is a high-visibility aisle-end display position, but actual sales effect depends on the product, signage, route and replenishment execution.
