Coil cradle support
Coil racks support cylindrical loads with controlled contact points, reducing the risk of rolling or point loading from improvised flat storage.
Cantilever Racking
Coil Storage Rack
Support and restraint planning for metal coils, reels and cylindrical loads where cradle geometry must be confirmed.
Quick Answer
What is Coil Storage Rack?
Coil Storage Rack supports steel coils, reels or cylindrical rolls while controlling rolling risk, edge damage and handling clearance. The support arrangement must be confirmed from coil diameter, width, weight, strapping condition, loading method and photos or samples. Do not assume cradle, chock, saddle or fixed restraint details until selected.
Typical applications
Where This System Fits
- Service centres and manufacturing coil stores with known load units.
- Projects where coil diameter, width, weight and loading method can be checked before layout approval.
- Teams needing a clearer alternative to generic storage for steel coils, reels and cylindrical rolls.
- Operations that can maintain labels, replenishment rules and housekeeping.
Operating logic
How This Product Works
Review the operating principle, load movement and main configuration checkpoints before comparing a system for the application.
Round load interface
Coil diameter, width, weight, edge condition and handling method decide whether the rack needs cradles, arms, saddles or special restraints.
Handling sequence
Forklift, crane or hoist movement must align with the support geometry so coils can be placed, identified and retrieved without unstable contact.
Coil rack inputs
Confirm coil dimensions, weight range, orientation, access frequency, lifting method, floor condition, restraint needs and whether coils are packed or exposed.
Technical notes
- Coil Storage Rack is planned around cylindrical-load stability. Outside diameter, inside diameter, coil width, edge condition, strapping, eye orientation and handling equipment determine the support and restraint arrangement.
- The handled unit is steel coils, reels and cylindrical rolls. That unit should be reviewed with photos or samples because footprint, base shape, edge condition, packaging strength and loaded weight change the rack selection more than a generic product name.
- Access is specific to the application: the operating face, replenishment side, aisle width, reach height and handling equipment have to match the real workflow. Coil Storage Rack should therefore be quoted from a site and load brief, not from an unsupported capacity claim.
- Rotation is process-led unless the selected mechanism physically advances the load. Labels, batch rules, min-max triggers, kanban cards or job paperwork must be aligned with the rack so operators know what to pick and what to refill.
- Rolling restraint, c-hook clearance, saddle contact, strapping condition are useful terms for internal selection because they describe the practical interface. They should not be turned into unsupported performance claims, published capacities or promises about availability.
- Confirmed cradle, chock or saddle detail is the main condition to check. Ignoring this point leaves the drawing apparently correct but fails to address awkward picking, replenishment, load protection and safe daily handling.
- Coil Storage Rack should be compared with sheet metal storage rack and cantilever racking system because buyers often group these systems together. The difference is the load unit, access face and confirmation input, not only the visible steelwork. The current image is useful for broad arrangement review, but drawer, cradle, fixed support or restraint details remain confirmation inputs unless selected by Runda Rack.
- For quotation, Runda Rack should receive load photos, sample dimensions, access constraints, expected stock rotation, environmental conditions and future change expectations. Those details allow a product-specific configuration without adding unsupported dimensions or engineering statements.
- Coil storage should start with rolling risk. Outside diameter, bore size, width, edge condition, strapping and coil set determine whether saddles, chocks, stops or other restraints are needed before the rack can be described responsibly.
- Handling clearance is product-specific. For the selected C-hook, forklift attachment, crane grab or coil car, confirm the required approach space and coil-eye orientation.

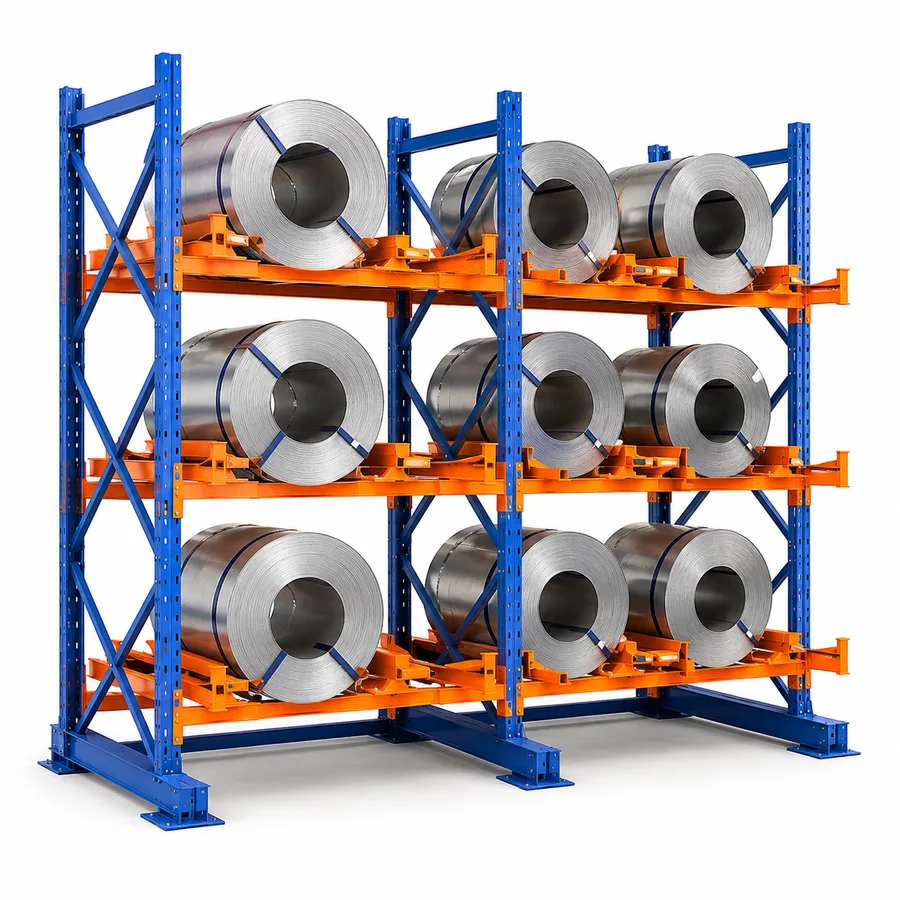

- The current image shows coils resting on support assemblies, but it does not prove the final cradle profile, locking device or removable chock detail. Those items should stay in selection inputs until Runda Rack confirms the supplied configuration.
System strengths
Advantages
- Matches the storage interface to steel coils, reels and cylindrical rolls rather than forcing a generic bay.
- Makes access method, replenishment side and operator contact points explicit.
- Creates concrete confirmation points for quotation and layout review.
- Helps separate this product from similar storage systems during selection.
Conditions to check
Limitations and Trade-Offs
- Confirmed cradle, chock or saddle detail must be resolved before final configuration.
- Unsuitable when the load unit varies beyond the selected support or lane arrangement.
- Stock rotation and traceability still need operating procedures and labels.
- Project-specific safety, floor, fire and handling constraints require confirmation.
Configuration brief
Technical specifications available on request
Final specifications for Coil Storage Rack are confirmed from the actual load, site and operating requirements.
- Coil diameter, width, weight and loading method.
- Actual samples or photos of steel coils, reels and cylindrical rolls.
- Operating face, replenishment route, aisle width and reach height.
- Label, batch, FIFO, kanban or job-control rule.
- Handling equipment, trolley, crane, lift truck or manual process.
- Floor, anchoring, fire, inspection and environmental constraints.
Standards and compliance
Applicable Standards and Project Requirements
RUNDA RACK products are designed, manufactured, supplied and installed in accordance with applicable international standards, project specifications and destination-market requirements. The engineering package aligns the product family, load data, site conditions, fire strategy, equipment interfaces and required documentation.
