The Workhorse of Lean Logistics: Heavy-Duty Collapsible Storage Cages

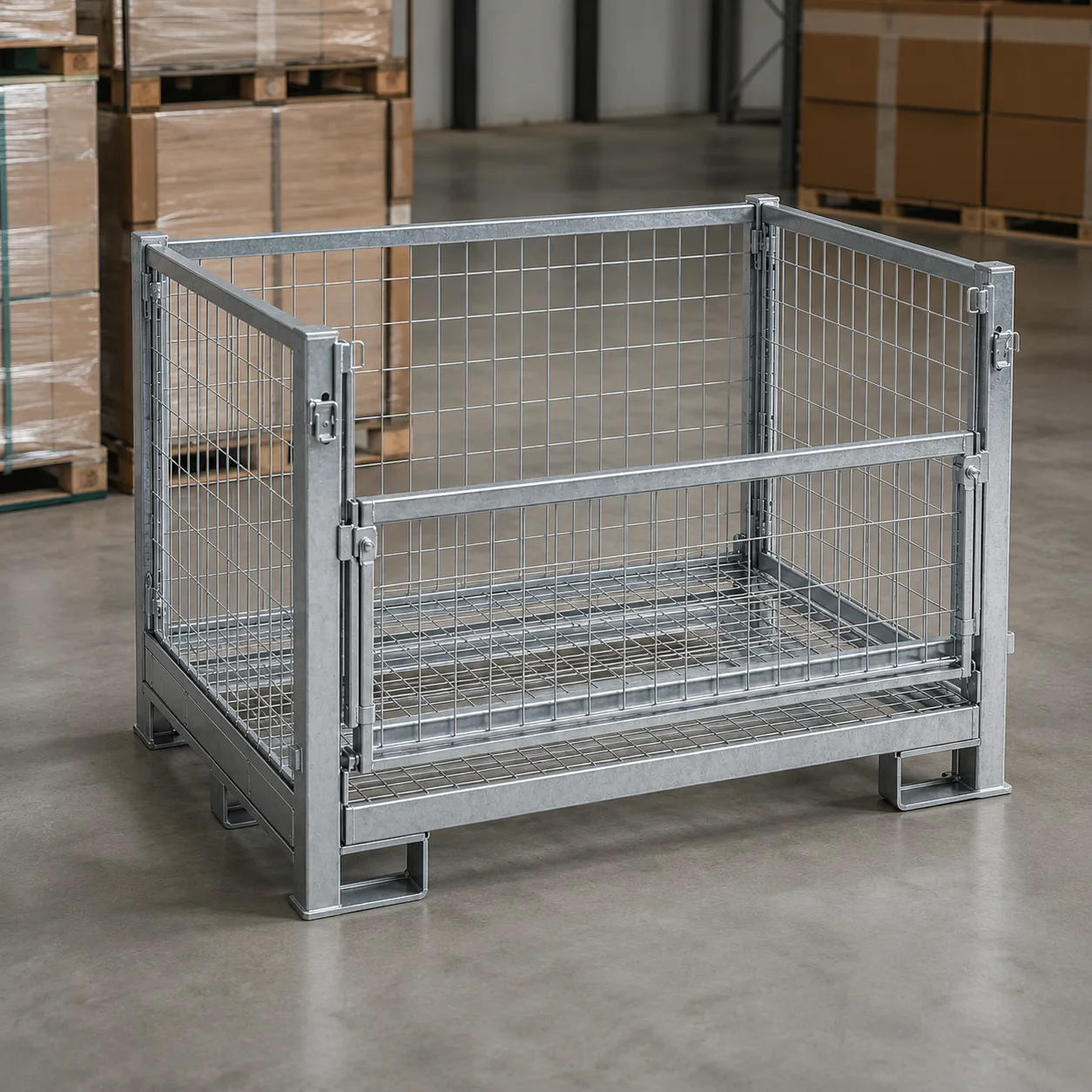

In the modern supply chain, the goal is ‘Zero Waste.’ This applies not just to time and movement, but to packaging. Traditional wooden crates are heavy, prone to breaking, and represent a significant disposal cost. The Runda Heavy-Duty Collapsible Storage Cage (also known as a Wire Mesh Container or Butterfly Cage) is the sustainable, high-performance alternative that has become the standard in automotive, manufacturing, and e-commerce logistics.

1. Context: The Logistics of Loose Goods

Not everything in a warehouse fits perfectly on a flat pallet. Irregularly shaped parts, heavy metal castings, and loose bulk items present a significant storage challenge. If stacked in boxes, they crush the bottom layers. If left loose, they create safety hazards and waste floor space.

The Runda Storage Cage standardizes the ‘non-standard.’ It provides a rigid, stackable, and transparent container that protects its contents while allowing for vertical storage density. Because the cages are made of steel, they are a ‘one-time investment’ that replaces thousands of single-use cardboard boxes or wooden crates over their 10-year lifespan.

2. Structural Engineering: The Precision Hinge and Locking System

The genius of the Runda cage lies in its ability to be both incredibly strong when open and incredibly compact when closed. This is achieved through precision-engineered mechanical joints.

The Spiral Hinge Mechanism

We utilize a specialized spiral hinge that connects the mesh panels. Unlike simple pin-hinges, the spiral design allows for a degree of ‘float,’ which prevents the joints from binding if the cage is slightly out of square due to an uneven floor. This ensures that even after years of heavy industrial use, the cage can still be folded easily by a single worker.

The Positive Lock Latches

Safety in stacking depends on the integrity of the cage walls. Our cages feature heavy-duty ‘U’ shaped spring latches that lock the front gate and side panels together. Once locked, the cage acts as a single rigid unit, capable of supporting up to 4,500kg of static pressure from the units stacked above it.

3. Material Science: High-Tensile Wire and Advanced Plating

A storage cage is only as good as the steel it is made from. Runda uses cold-drawn Q235 carbon steel wire, which undergoes a specialized hardening process to increase its tensile strength.

Multi-Point Resistance Welding

The mesh is formed using automated multi-point resistance welding. This ensures that every intersection of the wire is fused at a molecular level. If a single wire is cut or damaged by a forklift tine, the surrounding mesh remains structurally sound, preventing the ‘unzipping’ effect seen in lower-quality wire containers.

Trivalent Zinc Protection

To prevent rust in humid warehouse environments, our cages undergo an electro-galvanizing process using trivalent zinc. This finish is not only more environmentally friendly than traditional hexavalent chromium, but it also provides a smoother, brighter surface that is easier to clean and resists the buildup of dust and industrial oils.

4. ROI: Return Logistics and Cube Utilization

The financial justification for switching to collapsible cages is found in the ‘Return Logistics’ cycle.

Saving the ‘Empty Mile’

In a closed-loop supply chain, empty containers must be shipped back to the point of origin. Shipping empty rigid crates is effectively ‘shipping air.’ A folded Runda cage takes up only 25% of its expanded height. This means a truck that can carry 60 full cages can carry 240 folded ones on the return journey, cutting transport costs by 75%.

Reclaiming Floor Space

When not in use, empty cages can be folded and stacked 15 to 20 units high in a corner of the warehouse. This reclaims valuable floor space for production or active inventory, a level of flexibility that traditional racking or rigid bins cannot match.

5. Safety: Stacking Stability and Ergonomics

Safety is built into the geometry of the cage.

The Interlocking ‘U’ Foot

The most critical safety feature is the base foot. Runda’s specialized ‘U’ shaped feet are designed to nest perfectly over the top rim of the cage below. This creates a mechanical interlock that prevents the stack from leaning or sliding, even if the floor is subject to the vibrations of nearby heavy machinery or forklift traffic.

The Half-Drop Gate Ergonomics

Bending over the side of a tall container to reach items at the bottom is a leading cause of workplace back strain. Our half-drop gate allows the top section of the front panel to fold down, providing easy, ergonomic access to the contents. This speeds up picking operations and improves worker safety.

6. Customization: Adapting to Your Workflow

Every industry has unique requirements, and the Runda cage is designed to be a modular platform.

Accessory Ecosystem

• PP Sheet Liners: For storing precision parts that require protection from scratches or for very small items.
• Towing Hitches: For connecting multiple cages into a ‘tugger-train’ for efficient line-side delivery.
• Integrated Label Holders: For clear identification of contents, supporting Kanban and ‘First-In-First-Out’ (FIFO) inventory systems.
• Heavy-Duty Casters: For manual movement of goods within a production cell.

Conclusion

The Runda Heavy-Duty Collapsible Storage Cage is a simple tool engineered to solve complex logistics problems. It provides the durability of steel, the visibility of wire mesh, and the space-saving benefits of a collapsible design. Whether you are moving automotive components across the country or organizing parcels in a local fulfillment center, these cages provide the structural integrity and operational flexibility required for modern lean manufacturing.

Contact the Runda logistics team today to discuss your container requirements and see how we can help you eliminate packaging waste and optimize your return logistics.
