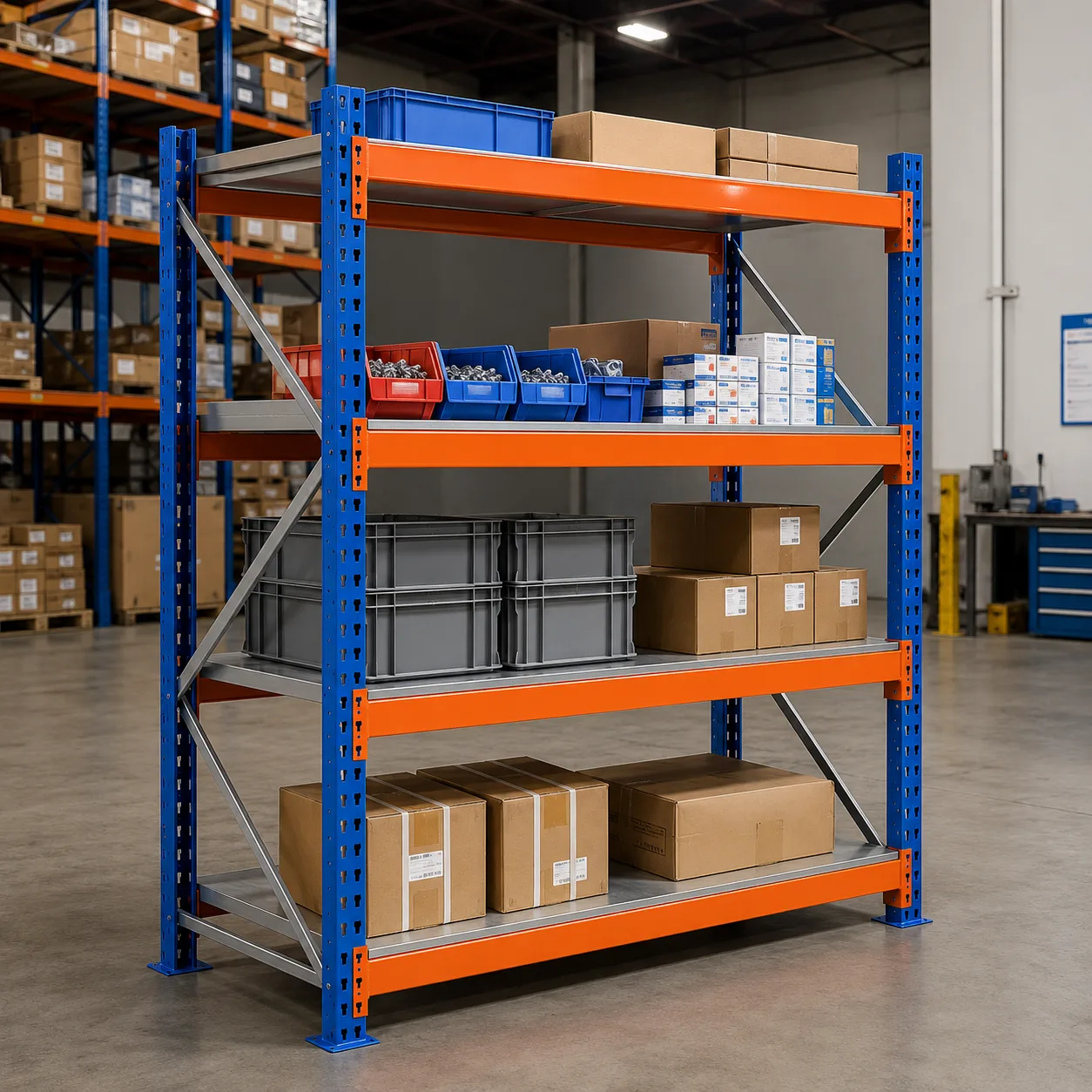

Medium-Duty Racking System
High-performance storage solution for industrial, retail, and e-commerce warehouses, balancing lightweight design with heavy load capacity.
Technical Specifications
Global Shipping & Installation Available
Why This Solution?
- Optimized for high-traffic environments
- Premium finishes that enhance product value
- Rapid 24/7 global technical support
Core Technology & Applications
Medium-Duty Racking: The Versatile Engine of Modern Logistics
In the spectrum of industrial storage, medium-duty racking occupies the most critical territory. It serves as the vital bridge between light-duty office shelving and massive heavy-duty pallet systems. Designed for manual hand-picking but built with industrial-strength steel, the Runda Medium-Duty Racking system is the preferred choice for e-commerce hubs, retail backrooms, and automotive workshops. This guide explores the technical details and strategic advantages that make our medium-duty system the world standard for balanced performance.
1. Context: The Growing Demand for Manual Fulfillment
With the global explosion of e-commerce and the shift toward smaller, more frequent shipments, the need for high-density manual storage has never been greater. Unlike pallet racking, which requires forklifts, medium-duty racks are designed for humans. They allow for rapid, 360-degree access to products, making them the most efficient solution for broken-case picking and parcel sorting. Runda has engineered this system to handle the increasing density of modern inventory while maintaining the flexibility required for rapid seasonal changes.
2. Structural Engineering: Designing for the ‘Sweet Spot’
The engineering challenge of medium-duty racking is to provide enough strength for heavy items (like engine parts or bulk liquids) without the bulk and cost of a pallet rack.
The P-Beam Profile
Most Runda medium-duty systems utilize a ‘P-shaped’ or ‘Step-beam’ profile. This design features a recessed ledge where the shelf decking sits. This is a critical safety and structural feature. By nesting the shelf inside the beam, the vertical load is transferred more efficiently, and the deck itself acts as a lateral tie, preventing the beams from rotating or twisting under load.
Reinforced Shelf Decks
A common point of failure in cheaper shelving is ‘oil-canning’ or bowing of the flat metal decks. Runda prevents this by welding multiple C-channel stiffeners to the underside of every shelf. The number of stiffeners is scaled based on the load rating (300kg, 500kg, or 800kg), ensuring that the shelf remains perfectly flat even when subjected to unevenly distributed loads.
Dynamic Connection Geometry
The connection between the beam and the upright uses our proprietary butterfly-hole pattern. This 3-point contact system ensures that there is zero ‘play’ in the joint. The precision of the stamping process ensures a tight interference fit that effectively turns individual components into a rigid, unified frame once assembled.
3. Material Science: Q235B High-Grade Carbon Steel
All Runda medium-duty components are manufactured from Q235B cold-rolled steel. This grade is selected for its specific mechanical properties:
- Yield Strength: Q235B provides a reliable yield point that allows for high load capacities without the risk of permanent deformation.
- Weldability: For components like reinforced beams, the weldability of Q235B ensures that joints are as strong as the base metal itself.
- Finish Quality: The cold-rolling process results in a smooth, non-porous surface that is ideal for our high-voltage electrostatic powder coating. This coating is cured at 200 degrees Celsius, creating a scratch-resistant finish that protects the steel from the daily impacts of bins and metal parts.
4. ROI: Maximizing Space and Labor Efficiency
Investing in a high-quality medium-duty system provides immediate and long-term financial benefits.
- Vertical Space Utilization: Many warehouses have unused ‘air space’ above their current shelving. Our medium-duty uprights can reach up to 6 meters in height, allowing businesses to double their storage capacity using order pickers or rolling ladders.
- Reduced Installation Costs: The boltless design means that a crew of two can install hundreds of bays per day without expensive power tools or specialized training. This significantly lowers the ‘all-in’ cost of a warehouse setup.
- Operational Logic: The ability to customize colors (e.g., blue for outbound, orange for returns) improves warehouse navigation and reduces picking errors, directly impacting the bottom line.
5. Safety: Industrial Standards for Manual Picking
Safety in a manual environment is different from a forklift-based warehouse. The focus is on preventing hand injuries and ensuring structural stability in high-traffic zones.
Edge Safety and Ergonomics
All Runda medium-duty components are roll-hemmed or deburred. This ensures that employees picking items at high speed will not suffer cuts or abrasions from sharp metal edges. The powder coating also provides a smooth surface that is easy to grip and clean.
Seismic and Tipping Resistance
For tall configurations, we provide floor-anchoring plates and wall-ties. Even though these racks are loaded by hand, their narrow footprint and high center of gravity make anchoring essential for safety in high-traffic or seismic areas. Our base plates are oversized to distribute the load and protect the concrete floor from cracking.
6. Installation: The Starter and Adder System
The Runda system is designed for maximum efficiency during deployment.
- Shared Uprights: By using Adder units, we reduce the total number of uprights in a row. This is not only a cost saving but also creates a more stable, interlocked structure.
- Infinite Adjustability: The 50mm pitch allows for a ‘custom’ fit for every inventory type. If you switch from large boxes to small bins, the rack can be reconfigured in minutes to maintain maximum density.
- Mobile Options: For high-density archive or cold-storage applications, our medium-duty frames can be mounted on mobile carriages, eliminating the need for fixed aisles and increasing storage density by up to 50%.
By selecting the Runda Medium-Duty Racking System, you are investing in a high-performance, industrial-grade storage foundation that is built to grow with your business. It is the ultimate solution for those who demand strength, flexibility, and efficiency.
Core Technology Excellence
Q235B High-Tensile Steel
Uprights and beams are crafted from premium Q235B steel, precision-engineered to maintain a massive safety margin even at 800kg loads.
Boltless Self-Locking
Gravity-driven friction locking eliminates the need for hardware, drastically reducing setup time while increasing overall structural rigidity.
Modular Scalability
Connect starter and adder units indefinitely to share uprights, reducing your total investment while maximizing floor coverage.
Visual Management Colors

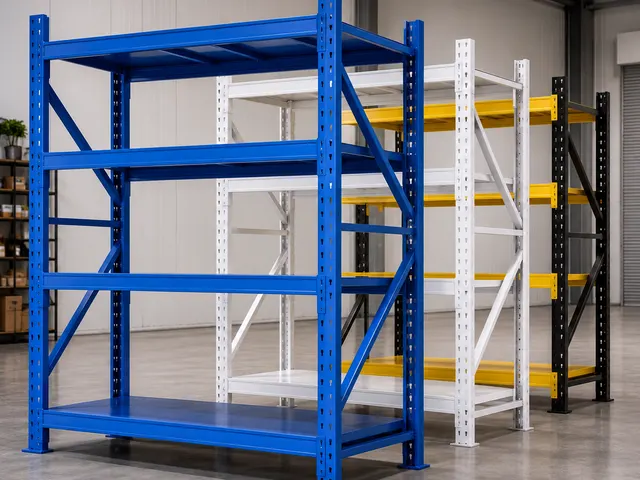

Available in standard Blue/Orange or custom RAL colors, allowing for color-coded zone management to improve warehouse logic.
Industry Applications
E-commerce Fulfillment
Storing high-velocity medium-sized parcels and picking bins for maximum daily throughput.
Industrial Parts Storage
Safe and organized storage for metal components, motors, and mechanical spares.
Retail Logistics Hubs
Providing a robust buffer for bulk drinks, grains, and detergents before store replenishment.
Project FAQ
Q: What is the primary difference between medium-duty and light-duty racking?
A: The primary difference lies in the material gauge and the structural reinforcement of the components. Medium-duty racks use thicker Q235B steel for the upright columns and beams. Additionally, medium-duty shelf panels include multiple welded reinforcement ribs on the underside to prevent sagging under concentrated loads. While light-duty is suitable for documents and light parcels, medium-duty is designed for industrial components, dense retail stock, and heavy e-commerce bins.
Q: How does the butterfly-lock system ensure safety at the maximum 800kg load?
A: The butterfly-lock system is a form of mechanical interference fit. The heavier the load placed on the shelf, the more the beam connector is forced into the tapered slot of the upright. This creates a self-tightening effect. To ensure safety, we also include heavy-duty safety pins that lock the beam in place, preventing any accidental upward movement during manual loading or unloading.
Q: Can the medium-duty rack be converted into a multi-tier mezzanine system?
A: Yes, our medium-duty racking is designed with multi-tier potential. Because the uprights have high vertical load capacity, they can support floor joists and walkways. This allows businesses to create a two-level or three-level storage system within the same building footprint, doubling or tripling their storage capacity without moving to a larger facility.
Q: Which decking option is best for storing oily industrial parts?
A: For industrial environments where oil, grease, or chemicals are present, we recommend our galvanized steel decks. Unlike powder-coated decks, galvanized steel has a metallurgical bond with the zinc coating that is highly resistant to chemical corrosion and mechanical scraping. Alternatively, wire mesh decking can be used to allow fluids to drain through and improve air circulation.
Q: What is the benefit of the 'Starter' and 'Adder' configuration?
A: The Starter and Adder system is a cost-optimization strategy. A Starter unit has four uprights and stands alone. An Adder unit shares two uprights with the adjacent unit. This configuration reduces the number of expensive upright columns required for a long run of shelving, lowering the total project cost by up to 25% while also increasing the overall lateral stability of the entire row.
Q: Are these racks suitable for cold storage or high-humidity environments?
A: Our standard epoxy powder coating is highly resistant to moisture, but for long-term use in walk-in freezers or tropical humidity, we recommend a hot-dip galvanized finish. Hot-dip galvanizing provides a thicker protective layer that protects both the interior and exterior of the hollow steel sections, ensuring zero rust even in extreme conditions.
Q: How do you calculate the shelf levels needed for an e-commerce fulfillment center?
A: We recommend analyzing your most common bin or parcel heights. With our 50mm adjustment pitch, you should leave approximately 100mm of 'hand clearance' above each bin for easy picking. Our design team can perform a cubic volume analysis based on your SKU data to determine the optimal number of levels to maximize your warehouse throughput.
