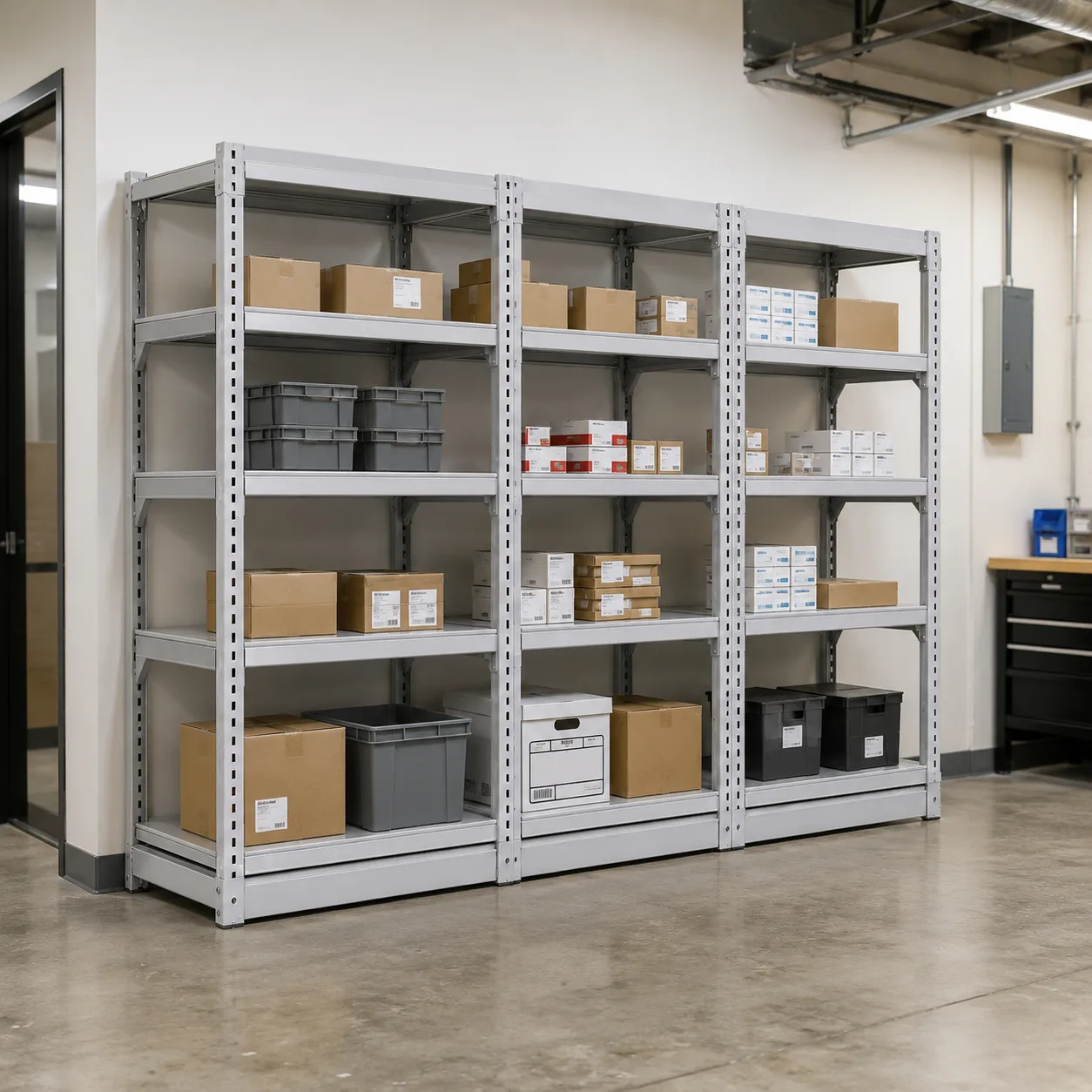

Technical Guide to Four-Column Heavy-Duty Shelving

The Runda Four-Column Shelf is the definitive intersection of industrial-grade strength and retail-focused design. While standard supermarket shelving is adequate for lightweight consumer packaged goods, it often fails under the immense static pressure of bulk commodities like grains, oils, beverages, and appliances. Runda’s Four-Post system addresses this gap by utilizing a quad-pillar support architecture that eliminates structural sagging and ensures 100% vertical stability in high-traffic retail environments.

Industry Context: The Challenge of Bulk Merchandising

As the retail landscape evolves toward “Warehouse Club” and “Big Box” formats, the weight requirements for shelving have increased dramatically. Traditional cantilever shelving, which is supported by a single center-post, is prone to “shelf creep”—a gradual deformation of the metal under constant load. This deformation is not only an aesthetic problem but a significant safety hazard in public aisles.

Furthermore, the rise of “Ready-to-Ship” bulk packaging means that retail shelves must now handle loads that were previously reserved for warehouse pallets. Runda’s Four-Column solutions are engineered for this new reality, providing a platform that can support up to 300kg per level while maintaining the clean lines and modular flexibility required for modern store aesthetics.

Structural Engineering: The Physics of Quad-Post Stability

The engineering secret of the four-column shelf lies in its ability to distribute gravity loads directly through vertical pillars to the floor, avoiding the leverage (moment) forces that plague cantilever designs.

1. Independent Quad-Post Architecture: By utilizing four independent vertical load points, the system creates a rigid geometric “box.” This architecture ensures that even if one corner is heavily loaded, the stress is distributed across the entire frame. This is critical for storing “dense” retail items like cases of canned goods or large home appliances where center-of-gravity can vary.

2. Cold-Rolled Reinforcement: The horizontal beams that support the shelf panels are manufactured with a “C-profile” or “Step-beam” geometry. These profiles are designed to resist vertical bending. In our heavy-duty configurations, we weld additional support ribs to the underside of the steel panels, ensuring that the shelf remains perfectly flat even after years of supporting 200kg+ loads.

3. Precision Locking Mechanism: The connection between the beams and the columns utilizes a multi-point “lug” system. As weight is added to the shelf, the downward force drives the beam deeper into the column slot, creating a more secure, rattle-free connection that is virtually impossible to dislodge accidentally.

Material Science: Engineering for Longevity and Hygiene

Supermarket environments are high-wear zones. Shelves are subjected to constant abrasion from products, impact from shopping carts, and exposure to cleaning chemicals.

Q235B High-Grade Industrial Steel: Runda utilizes Q235B cold-rolled steel as our primary substrate. This material is chosen for its consistent tensile strength and superior surface finish. By utilizing “thickened” profiles (up to 2.0mm for uprights), we provide a safety factor that far exceeds industry standard requirements for retail shelving.

Electrostatic Anti-Microbial Finish: Health and hygiene are paramount in food retail. Our powder coating process includes an antimicrobial additive that disrupts the cellular activity of bacteria. This coating is cured in a 200 degree Celsius oven, resulting in a finish that is not only hygienic but also exceptionally resistant to the “chipping” that occurs when heavy items are dragged across the shelf surface.

Operational Efficiency: Maximizing Floor-Space ROI

Efficiency in retail is measured by the SKU density and the ease of replenishment. The Runda Four-Column Shelf excels in both metrics.

1. Optimized Vertical Pitch: With 25mm height adjustment increments, store managers can eliminate “dead air” between shelves. If your rice brand moves from a 5kg bag to a 10kg bag, you can reconfigure your entire aisle in minutes, ensuring that you are maximizing the sales potential of your vertical space.

2. Starter and Adder Logic: Our modular system allows for the creation of continuous, unbroken aisles. An “Adder” unit shares a set of columns with the adjacent “Starter” unit. This not only reduces the total investment cost but also creates a cleaner visual run and maximizes the usable shelf width by eliminating redundant vertical obstructions.

3. Integrated Visual Merchandising: Despite its industrial strength, the four-column shelf is designed to support a wide range of retail accessories, including price tags, LED lighting strips, and wire dividers. This allows retailers to maintain a premium look while benefiting from heavy-duty structural performance.

Safety & Compliance: Engineering for Public Safety

In a public retail environment, structural failure is not an option. Runda adheres to the most stringent international standards for commercial furniture and storage.

Compliance Standards:

• ISO 9001:2015: Quality management in every phase of production.
• CE Certification: Compliance with European safety and environmental standards.
• TUV Sud Tested: Independent verification of load-bearing capacities and structural integrity.

Key Safety Features:

• Tipping Resistance: The wide footprint of the four-column design provides a high “moment of stability,” making it significantly more difficult to tip over than narrow-base cantilever shelving.
• Safety Locking Pins: Every beam connection includes a mechanical lock to ensure that items cannot be pushed “up and out” during restocking.
• Rounded Edge Profiles: All exposed metal edges are precision-formed to prevent customer injuries.

Installation & Scalability: Adaptive Infrastructure

Runda’s modular design philosophy ensures that your store layout can adapt as quickly as the market changes.

1. Tool-Free Reconfiguration: While the initial assembly is typically handled by a professional crew, the day-to-day adjustment of shelf heights can be performed by store staff without any specialized tools. This allows for rapid seasonal transitions.

2. Floor Leveling Accuracy: Each column is fitted with a heavy-duty leveling foot. This is critical in large retail spaces where concrete floors are rarely perfectly flat. Proper leveling ensures that the entire shelf run remains perfectly plumb, preventing uneven load distribution.

3. Future-Proof Expansion: The components used in our four-column system are standardized. If you decide to expand your store or move your heavy-duty section to a new location five years from now, your existing Runda components will be fully compatible with new units, protecting your long-term capital investment.

---

Secure Your Heavy-Duty Retail Future: Runda provides more than just shelving; we provide structural peace of mind. Contact our retail engineering team today for a custom load-bearing analysis and floor plan optimization.
